Manager Instructions

BIM Manager Clash Detection Manager Clash Result Manager

Workflow

The tasks of roles in the clash management are as follow:

1. BIM Manager: Model Set settings and publish. please refer to Publishing Model Sets

2. Clash Detection Manager: Manage the plugin, run condition settings, and upload results to the server, please refer to Clash Detection Plugin.

3. Clash Result Manager: Manage the clash results, and assign personnel to solve the clash. Please refer to SyncoBox Clash Management



Updating Clash Data

Clash Detection Manager

Initialization

1. In the model set, the clash conditions and results of each execution will be stored in the Clash Set.
2. The clash set stores multiple clash conditions.
3. There will be multiple clash results in the clash conditions.

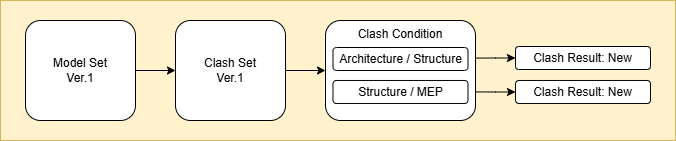

4. When the clash is run the first time, the newly clash will be marked as New.

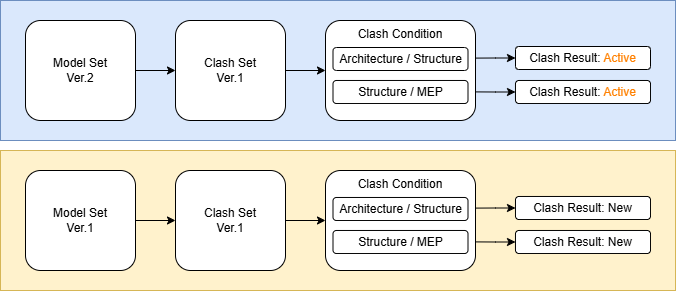

Updating Model Set

1. When updates model set, the existing clash results will show Active if conditions of clash detection remain the same.

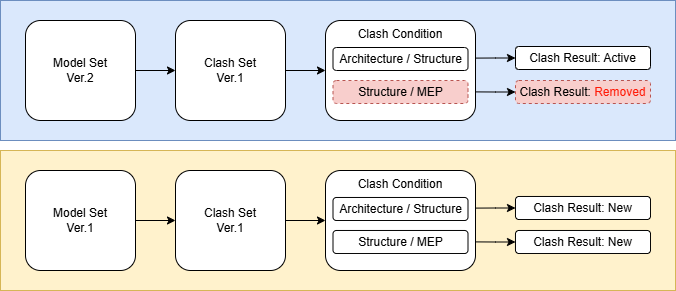

Deleting Clash Results

1. If the clash conditions of the previous model set are deleted, then all of the clash statuses will be changed to "Removed".

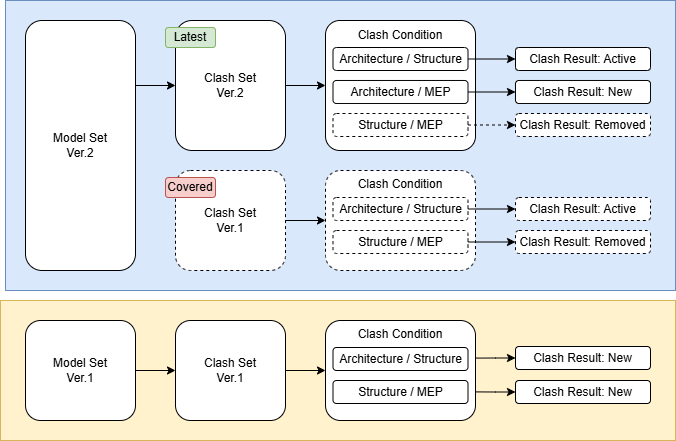

Executing Multiple Clash Detections on the Same Model Set

1. If multiple clashes are excuted on the same model set, then it will generate multiple clash set.

2. The old version of clash set data will be overwritten by the new version.

   TIP

   In SyncoBox, only display the latest clash set of the model set.
